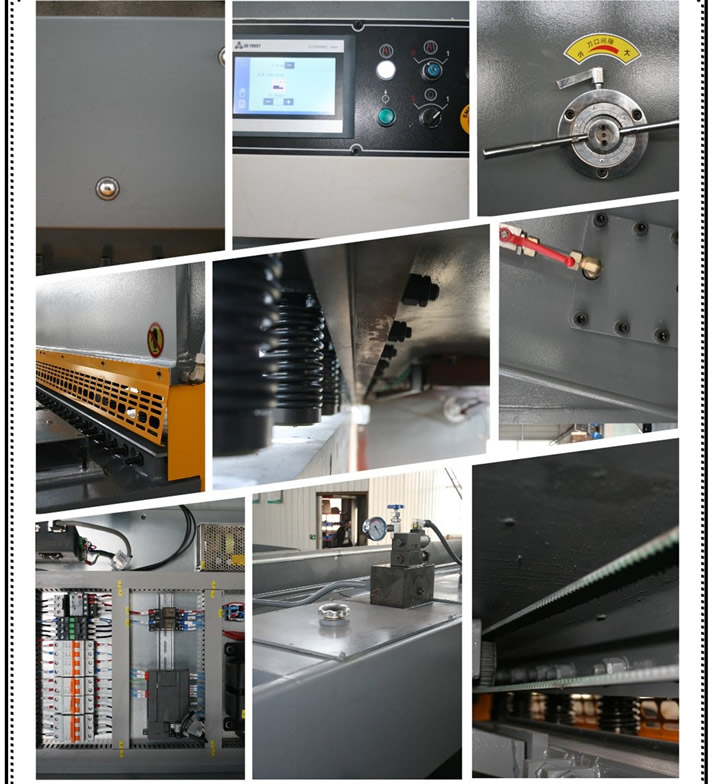

產品特點:
1.采用整體焊接機架結構，機床剛性好。
2.機架采用大型數控鏜銑床整體加工，保證剪切精度和質量。
3.刃口間隙調整迅速方便、準確。
4.剪切行程可無級調節，以提高剪切效率。
5.采用串聯式油缸同步系統，氮氣缸回程，工作平穩可靠。
6.標配ESTUN剪板機專用數控系統，精度高，操作方便。
7.后擋料采用國際名牌滾珠絲桿、直線導軌結構，伺服電機驅動，定位準確、可靠。
8.球形滾珠托料臺，方便用戶進料剪切。
9.前托料桿設有前定位刻度尺，機械擋塊定位，適應用戶不同的操作要求。
10.設有燈光照明，便于對線剪切。
11.可選配氣動后托料和前自動送料臺。
技術參數：

QC11Y Series Hydraulic guillotine beam shearing machine
Specification	Shearing thickness (mm)	Shearing width （mm）	Strokes mm-1	Backguage range (mm)	Shearing angler (°)	Workbench height （mm）	Main power （kw）
QC11Y/K -6*2500	6	2500	10-35	20-600	1°30′	800	7.5
QC11Y/K -6*3200	6	3200	8-35	20-600	1°30′	800	7.5
QC11Y/K -6*4000	6	4000	7-35	20-600	1°30′	800	7.5
QC11Y/K -6*5000	6	5000	6-25	20-800	1°30′	900	11
QC11Y/K -6*6000	6	6000	5-25	20-800	1°30′	1000	11
QC11Y/K -8*2500	8	2500	10-35	20-600	1°30′	800	7.5
QC11Y/K -8*3200	8	3200	8-35	20-600	1°30′	900	7.5
QC11Y/K -8*4000	8	4000	7-35	20-600	1°30′	1000	15
QC11Y/K -8*5000	8	5000	6-25	20-800	0.5-2°	1050	15
QC11Y/K -8*6000	8	6000	5-25	20-800	0.5-2°	840	15
QC11Y/K -12*2500	12	2500	10-35	20-800	0.5-2.5°	900	15
QC11Y/K -12*3200	12	3200	6-20	20-800	0.5-2.5°	940	15
QC11Y/K -12*4000	12	4000	6-20	20-800	0.5-2.5°	1000	15
QC11Y/K -12*5000	12	5000	5-15	20-800	0.5-2.5°	1060	30
QC11Y/K -12*6000	12	6000	6-15	20-800	0.5-2.5°	840	18.5
QC11Y/K -16*3200	16	3200	7-30	20-800	2°30′	900	30
QC11Y/K -16*4000	16	4000	6-30	20-800	2°30′	950	30
QC11Y/K -16*5000	16	5000	6-15	20-800	2°30′	1100	30
QC11Y/K -16*6000	16	6000	5-15	20-800	0.5-2.5°	1100	37
QC11Y/K -20*2500	20	2500	9-30	20-1000	0.5-2.5°	900	30
QC11Y/K -20*3200	20	3200	7-30	20-1000	0.5-3°	950	30
QC11Y/K -20*4000	20	4000	6-30	20-1000	0.5-3°	1100	30
QC11Y/K -20*5000	20	5000	5-30	20-1000	0.5-3°	1100	37
QC11Y/K -20*6000	20	6000	5-15	20-1000	3°	1200	45
QC11Y/K -25*2500	25	2500	5-25	20-1000	3°	900	37
QC11Y/K -25*3200	25	3200	4-25	20-1000	0.5-3.5°	950	37
QC11Y/K -25*4000	25	4000	3-20	20-1000	0.5-3.5°	1100	37
QC11Y/K -32*2500	32	2500	4-12	20-1000	0.5-3.5°	1000	55
QC11Y/K -32*3200	32	3200	4-12	20-1000	0.5-3.5°	1100	55
QC11Y/K -40*2500	40	2500	3-10	20-1000	0.5-3.5°	1200	60
QC11Y/K -40*3200	40	3200	3-10	20-1000	0.5-4°	1200	60
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice!
